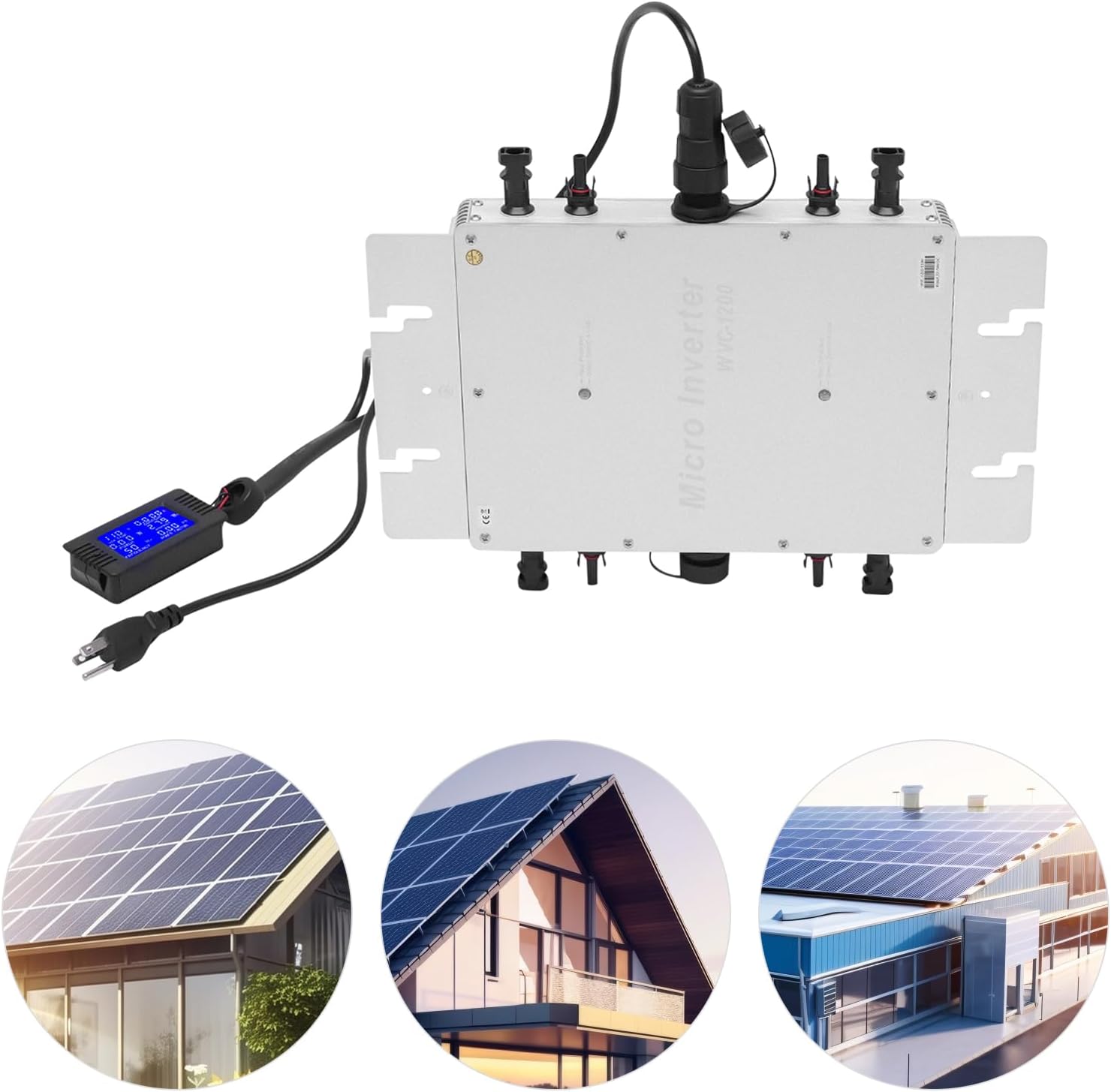

Solar Inverter, 1200W Aluminium Alloy Inverter with LCD Display, Pure Sine Wave Inverter Grid Tie Solar Inverter Kit for 30V or 36V Solar Panels Silver 110V

SpecificationModel: WVC-1200WColor: SilverMaterial: Aluminium AlloyPower: 1200WVoltage: 110VPlug Type: US StandardMaximum Input DC Voltage: 54VPeak Power Tracking Voltage: 22-45VOperating Voltage Range: 17-50VMin/Max Start-up Voltage: 22-50VDCMaximum DC Short Circuit Current: 80AMaximum Input Operating Current: 54.4APeak Power Output: 1200wattRated Output Power: 1150wattRated Output Current: 9.58ARated Voltage Range: 80-160VACRated Frequency Range: 57-62.5HzPower Factor: ＞99％Max Unit Per Branch Circut: 3pcs(Single-phase)Static MPPT Efficiency: 99.5%Maximum Output Efficiency: 91.2%Night Time Power Loss: <1WTotal Flow Distortion: <5%Ambient Temperature Range: ﹣40℃~60℃/﹣40℉~140℉Water-proof Rating: IP65Cooling Method: Self-coolingCommunication Mode: Power Line CarrierPower Transmission Mode: Reverse Transmission, Load PriorityGross Weight: 4.08kg/8.99lbsNet Weight: 2.88kg/6.35lbsProduct Size: 21*37.4*4cm/8.27*14.72*1.57inchPackage Size: 47.5*34*11.5cm/18.7*13.39*4.53inchPackage Included1* Inverter1* Power Cord1* English ManualOther Accessories for InstallationApplicationThis product is applicable to 30V or 36V solar panels, 36V batteries. The inverter can be widely used in residential or commercial areas for turning the direct current generated by solar panels into alternating current.Notes1.Please install the inverter correctly according to the instructions.2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.

• 【High Efficiency】The inverter has built-in high-precision maximum power point tracking, which can optimize the power collection from the solar panel, accurately capture and lock the maximum output power point, and greatly increase power generation to more than 25%. In addition, the efficient power reverse transmission technology can transmit the power that can not be used up to the grid in the reverse direction to other places for use, and the power transmission rate can reach 99.9%
• 【Digital Control & LCD Display】The grid tie inverter adopts intelligent soft switching technology, high-frequency switching power supply technology, and 32-bit DSP full digital SPWM control technology, making the inverter strong anti-interference ability, fast use speed, high intelligence, and a powerful functional system, which can meet the needs of users. The inverter is aslo equipped with an LCD display screen to monitor voltage, power, frequency, current, etc. so you can see the machine clearly in use
• 【Solar Inverter】The output and input of the system are completely electrically isolated, the insulation performance of the entire power distribution system is good. The inverter has six protection functions: over-temperature protection, under-voltage alarm, under-voltage protection, over-voltage protection, short circuit protection, overload protection, etc. Besides, the IP65 water-proof design can prevent rain from eroding its surface, so you can use it with confidence
• 【Wide application】The 1200W solar inverter is suitable for 30V or 36V solar panels and 36V batteries. It can be applied in residential or commercial areas, converting the DC power generated by solar panels into AC power. In addition, it is equipped with two spacers to help you install photovoltaic brackets, making the inverter more stable
• 【Flexible Installation Mode】The inverter is made of aluminum alloy, which is durable. During installation, you can stack multiple inverters at will, form a single-phase parallel stacking system, or conveniently form a three-phase system to provide a three-phase AC
